Fluorescent Lamp Vertical Biological Laminar Air Flow Cabinet

Introduction :

Biological safety cabinet is a kind of safety equipment widely used in scientific research , teaching , clinical inspection and production in the fields of microbiology , biomedicine , genetic recombination , animal experiment , biological products , etc . It is also the first-level protective barrier in laboratory biosafety . As basic safety equipment , the biosafety cabinet is a biosafety laboratory primary isolation safety protection device biosafety cabinet . All operations involving infectious materials must be carried out in the biosafety cabinet . The most commonly used biosafety cabinets for biosafety laboratories ( types A2 and B2 ) A2 type biosafety cabinet air circulation : 70% re-circulation, 30% exhaust , exhaust system can be discharged to the room or set up a local exhaust hood , 70% of the air is recycled after use , 30% of the air can be passed indoors discharge or connect to the exhaust system . The type A2 biosafety cabinet has no external fan installation .

Application :

1. Meet the requirements of the Chinese SFDA's YY0569 standard and the US NSF/ANSI49 standard for the secondary biosafety cabinets classified as Type A2 .

2. Vertical laminar negative pressure machine type. 70% of the air is filtered and recycled , and 30% of the air is filtered and discharged into the room or connected to the exhaust system .

3. The working area is all made of stainless steel 304, and the arc angle inner tank is formed once to increase the self - cleaning function . And the work area is equipped with a splash - proof safety power socket and various organ link valves for the operator to work .

4. It conforms to the principle of physical engineering and has a 10° inclination design , which makes the operation feel better .

5. Safety interlocking of lighting and sterilization systems .

Parameter:

Biological safety cabinet
External Size (L*W*H)mm	1100X750X2250	1300X750X2250	1500X750X2250
Internal Size (L*W*H)mm	940X600X660	1150X600X660	1350X600X660
Purification Rank	HEPA ISO5 ( Class 100 ); ULPA ISO4 ( Class 10 )
Material	Work zone : stainless steel 304 ; Cabinet : cold rolled steel with anti-bacteria powder coating
Air Flow System	70% Air Re-circulation , 30% Air Exhaust
Max Opening(mm)	420	420	400
Hepa Filter	Two sets 99.999% Efficiency @0.3um Filter life indicator
Control System	Microprocessor , LCD Display , Exhaust filter and down filter pressure , humidity and temperature , system working time
Tap	Water tap or Gas tap for choose : 1 set
Noise	EN1249<58dB / NSF49<61dB
Fluorescent Lamp	21W	21W	28W
Waterproof sockets	Two set Totally Consumption : <500W
Work Surface Height	750mm
Illumination	>1000lux
Caster	Footmaster Caster
Standard Accessory	Base stand , remote control , foot switch , drain value , ( exhaust blower exhaust duct ) for B2 only
Power supply	AC220V +_ 10% 50/60HZ 110V +_ 10%60HZ
Consumption	760W	800W	900W

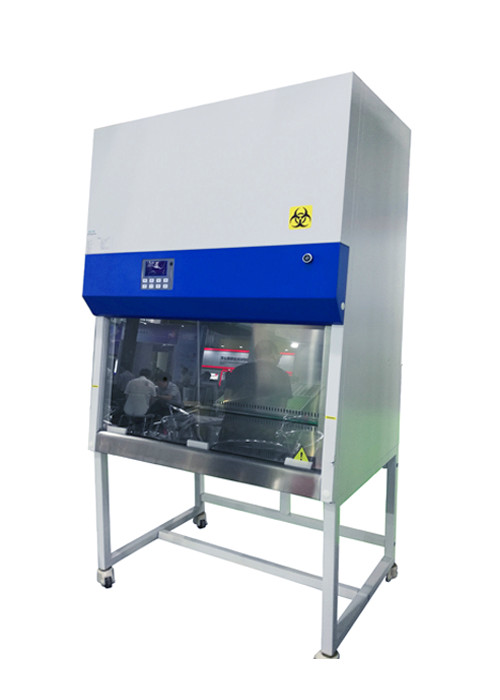

Photographs:

Beijing Silk Road Enterprise Management Services Co.,LTD is specialized in manufacturing air purification equipments and ESD products for clean room , since from 2009 year. We manufacture our products strictly in accordance with state standards. With the high-graded product quality in the industry, our company enjoys great reputation among the customers all over the country.
