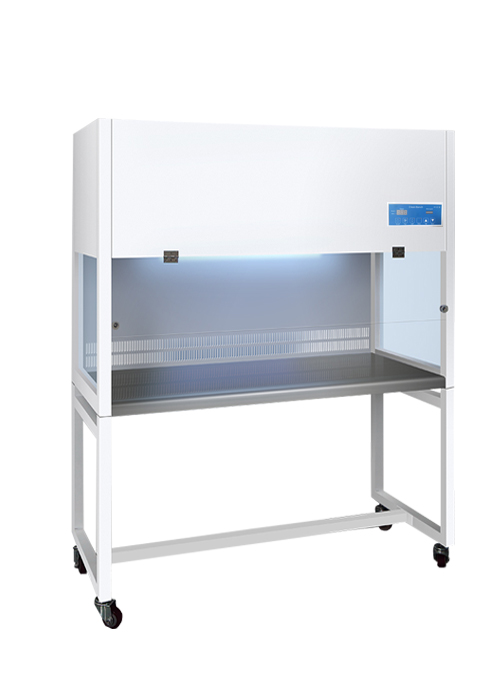

Easy Operation Adjustable Vertical Cleanroom Workbench
Introduction :
Vertical Laminar Air Flow Clean Carbinet is a kind of clean air
equipment that provides local clean an sterile working environment
, which can make the working area meet the requirement of 100%
purification . Comparing with building clean rooms , this equipment
reduces cost in initial investment and operating cost and create a
favorable environment for improving the production quality and
yield .
Application :
Electronics , Semi - conductors, Medicine and Health , Biological
pharmaceuticals , Aerospace , Aseptic laboratory , Scientific
research , Food , Hard-disk manufactory , Precise instrument , Opto
- electronics
Operation Features :
1. The air moves downward from filter positioned in the ceiling
toward the working area .
2. Vertical Laminar Clean Air Flow cabinet offers the benefits of
vertical airflow around objects on the work surface and horizontal
outflow through the work access opening acting as a barrier against
contamination .
3. The work surface on each vertical laminar air flow clean
carbinet is constructed from stainless steel for easy cleaning and
decontamination .
4. Wind velocity can be adjusted with optional wind velocity
controller .
5. The design of glass on the two side windows and no front sash
ensure a bright and spacious working area .
6. Easily and flexibly moving with high quality casters and
conveniently and reliably fixation with support legs .
7. High efficiency and high cleanliness .
8. Low noise , easy operation .
Illustration:
1: Pre - filter , 2: Centrigugal blower , 3: Pressure gauge , 4;
Mini-pleats Hepa filter , 5:Control panel , 6; Fluorescent lamp ,
7； Toughhened glass , 8; Socket , 9: Working table ( SUS ) , 10:
Removable wheel , 11； Support leg
Parameter :
| Vertical Laminar Air Flow Clean Cabinet |
| Model | KEL - VCB1 | KEL - VCB2 | KEL - VCB3 |
External size ( W * D * H ) mm | 1000X700X1800 | 1200X700X1800 | 1500X700X1800 |
Working area ( W * D * H ) mm | 900X650X600 | 1100X650X600 | 1400X650X600 |
| Purification Rank | Class 100 ( FS209E ) |
| Rating Air Flow | 950m3 / h | 1100m3 / h | 1400m3 / h |
| Construction | - Cabinet is steel with power coated and working area is SUS304 / 201
.
- Cabinet and working area is SUS 304 / 201 .
|
| Filtration efficiency | More than 99.99 % @ 0.3um H13 - H14 |
| Air speed | 0.3 - 0.6m/s ( Three levels are adjustable ) |
| Pressure gauge | American Dwyer Pressure Watch 1pcs |
| Fluorescent lamp | 20W * 1pcs | 30W * 1pcs | 40W * 1pcs |
| UV light | 1pcs |
| Illumination | > 400LUX |
| Blower | 280W | 405W | 490W |
| Noise | < 65dB |
| Power Supply | 220V - 240V 50 / 60HZ |
